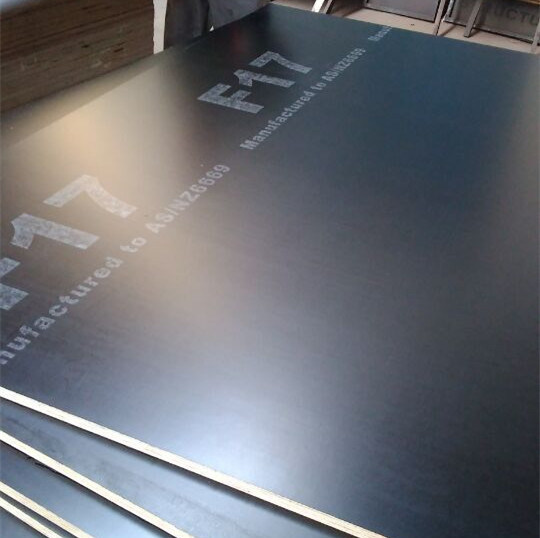

F17 Formply is a high-strength structural plywood built with a high-grade hardwood or birch core and a water-resistant phenolic high-density overlay (HDO) surface.
It meets Australian AS6669 and F17 bending strength standards (≥17 MPa) and suits high-load uses such as concrete formwork, rail vehicle chassis and building support structures.
High-grade hardwood or birch core for reliable strength.
Water-resistant phenolic high-density membrane finish.
Meets F17 bending strength of ≥17 MPa.
Suited to formwork, chassis and support structures.
NOTE: All products can be custom made in size and finish for your specific application.
Which Standards Does This Plywood Comply With：
| Size | 1200×1800 mm, 1200×2400 mm (other sizes by custom) |
| Thickness | 17 mm (custom thickness available) |
| Glue | Phenolic glue – passes 72‑hour boil test |
| Face/Back | Dynea HDO phenolic film (Black/Brown, Class 2) |
| Core Material | Hardwood / Birch / Pine cores |
| Certification | AS 6669, F17 structural-grade approved |
| Loading Quantity | 20′GP: 10–12 pallets (~22 m³); 40′HQ: 20–27 pallets (~43 m³) |
| Density | ~520–700 kg/m³ (depending on core) |
| Moisture Content | 6–10% typically |
| Edge | Factory-coated waterproof edges; resealing recommended after cutting |
F17 grade guarantees ≥17MPa bending strength and strong bearing capacity.
High-density membrane surface (HDO) is waterproof and does not expand, and the concrete surface is flat and high-quality.
wear-resistant, alkali-resistant, chemical-resistant, high and low temperature (–40℃ to +50℃), long service life.
multi-layer cross-gluing, anti-cracking and anti-warping
water-based sealing paint is applied to the four sides of the edge in the factory to reduce moisture intrusion.
The surface is wear-resistant and peeling-resistant, and can be re-sealed after cutting for continued use.
building columns and walls, beams and slabs, structural support systems
carriage floors, sleeper bottom plates
scaffolding platforms, floor paving, roof support plates
high turnover construction sites, rental formwork, etc.
