LVL / LVB

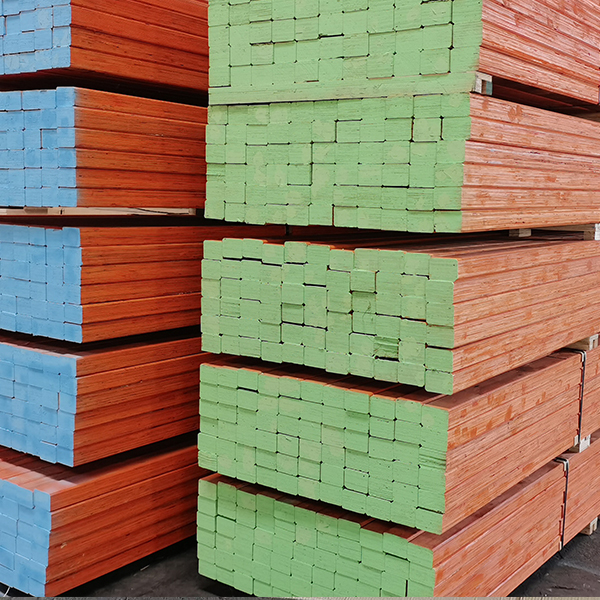

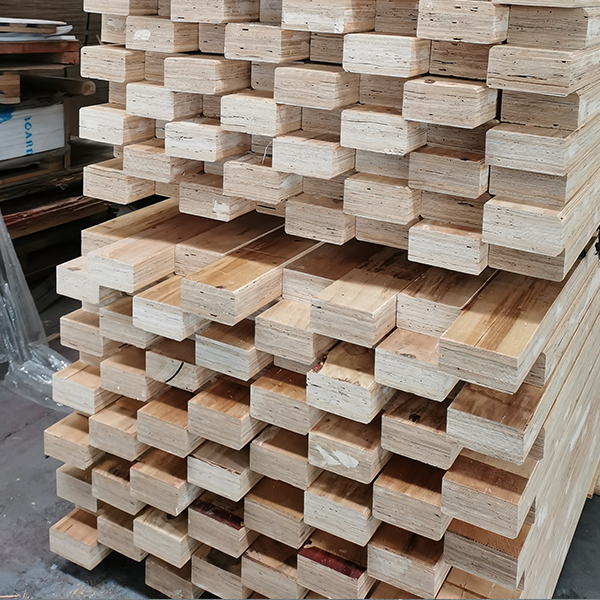

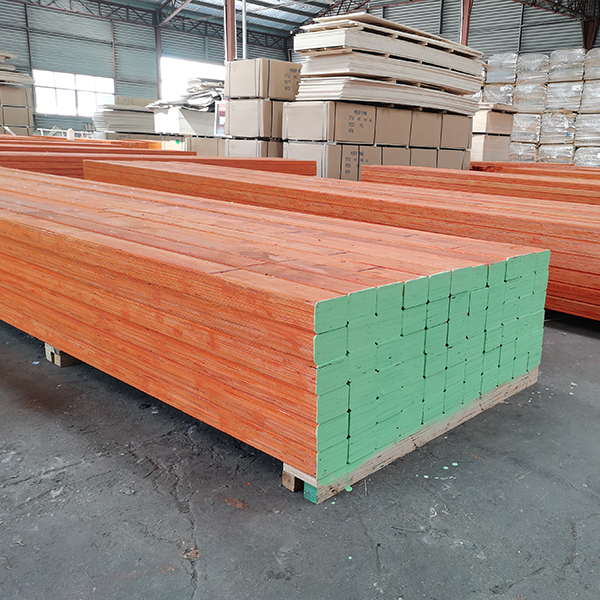

LVL Beam

LVL Beam (Laminated Veneer Lumber Beam) is an engineered wood product made by bonding multiple layers of veneer with adhesive under heat and pressure. It features high strength, dimensional stability, and uniformity – often stronger and straighter than solid sawn lumber or glulam.

NOTE: All products can be custom made in size and finish for your specific application.

Which Standards Does This Plywood Comply With:

Tech Specs.

Size Width: 35–600 mm; Lengths up to 12 m (custom work available)
Thickness 35 /45 /63 /75 /90 /130 /150 /170 /200 /240 /300 /360 /400 /450 /525 /600 mm (custom options)
Glue Phenolic (WBP), E0; optional termite/decay treatment
Face/Back Structural veneer layers, hardwood grade, not decorative
Core Material Pine, Larch, Birch or softwood veneers
Certification AS/NZS 4357, ISO 9001, CE, FSC, CARB, EPA, EUTR
Loading Quantity 20′GP: ~8 pallets (~22 m³); 40′HQ: ~18–20 pallets (~43–50 m³)
Density ~520–700 kg/m³ depending on core plywood type
Moisture Content 6–15% (typically 9–12%)
Edge Raw edges; optional edge-sealing recommended after cutting

Product Features

  • High strength and high rigidity

    excellent load-bearing performance, suitable for heavy-duty structures.

  • Excellent dimensional stability

    tightly controlled manufacturing process with minimal warping and cracking.

  • Unlimited length

    can be manufactured to over 12 m, reducing the number of structural splices.

  • Strong resistance to warping

    more resistant to wetting and drying than solid wood beams.

  • Highly customizable

    flexible in width, thickness, coating and glue grade.

  • Environmentally friendly and timber saving

    fast-growing softwood laminated, reducing the use of precious timber, low manufacturing losses.

  • Easy processing

    can be drilled, sawn and joined, suitable for on-site construction.

Applications

  • Building structure beams, beams, purlins, joists

  • Bridge members, pile bearing plates

  • Stairs, structural beams, support beams

  • Formwork beams, braced frames, scaffolding plates

  • Industrial storage, heavy-duty structures, residential/commercial building frames
