Formwork Plywood

Film Faced Plywood

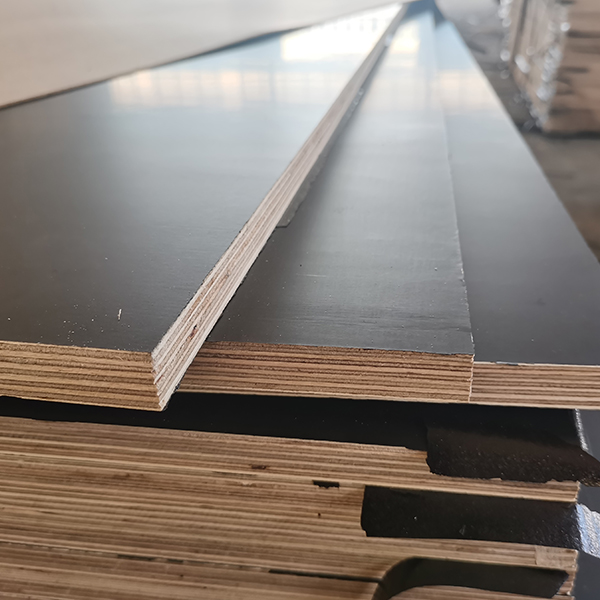

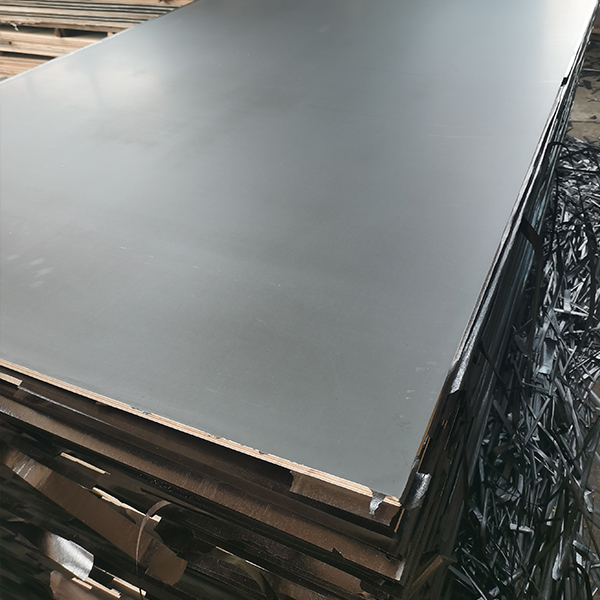

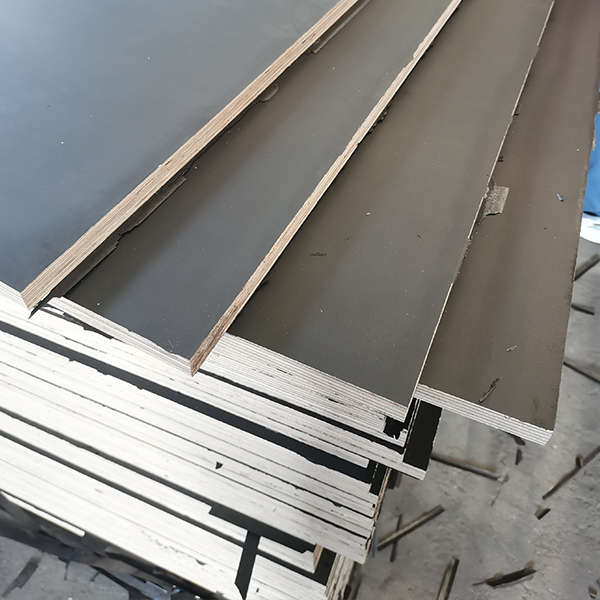

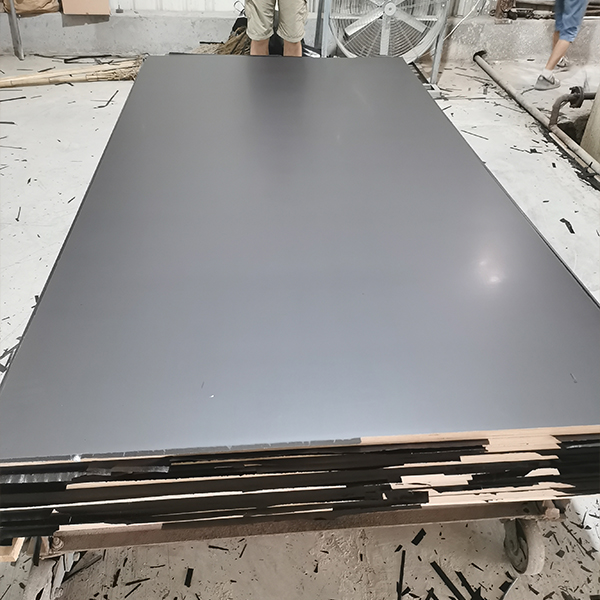

Film Faced Plywood is a high-strength plywood sheet covered with waterproof phenolic film on both sides. It is widely used in concrete formwork systems for construction projects, offering excellent durability, water resistance, and smooth demolding performance.

NOTE: All products can be custom made in size and finish for your specific application.

Which Standards Does This Plywood Comply With:

Tech Specs.

Size 1220×2440mm,1250x2500mm, 1500x3000mm, (customizable)
Thickness 9mm, 12mm, 15mm, 18mm, etc.
Glue WBP, Melamine, Phenolic
Face/Back Black film, Brown film, Mesh, Glossy
Core Material Poplar, Eucalyptus, Birch, Mixed
Certification FSC, ISO9001, CE, CARB
Loading Quantity 20′GP: ~22–26 CBM; 40′HQ: ~50–55 CBM
Density 550–700 kg/m³
Moisture Content  ≤ 12%
Edge Waterproof sealed with wax or paint

Product Features

  • Strong waterproof performance

    Phenolic membrane and WBP glue ensure that the sheets are not easy to delaminate even in a humid environment.

  • High reuse times

    under normal use conditions, it can be recycled 10-30 times, and even up to 50 times for high quality products.

  • Good demoulding effect

    smooth surface, concrete structure is smooth after demoulding without secondary plastering.

  • High-strength load-bearing

    multi-layer structure makes it have good compression and bending resistance.

  • Dimensional stability and high construction efficiency

    no cracking, no warping, saving construction time and labour cost.

  • Edge protection treatment

    four edges are sealed with waterproof wax, preventing the core board from absorbing water and expanding.

Applications

  • Formwork systems for concrete pouring (walls, beams, floor slabs, columns)

  • Bridge, metro and tunnel construction projects

  • Civil buildings and industrial plants

  • Heavy-duty packaging boxes, pallets

  • Temporary construction roads or protection pads
