LVL / LVB

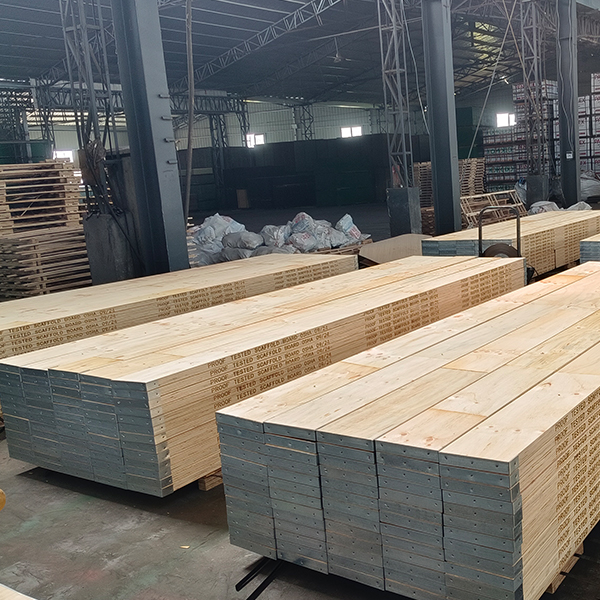

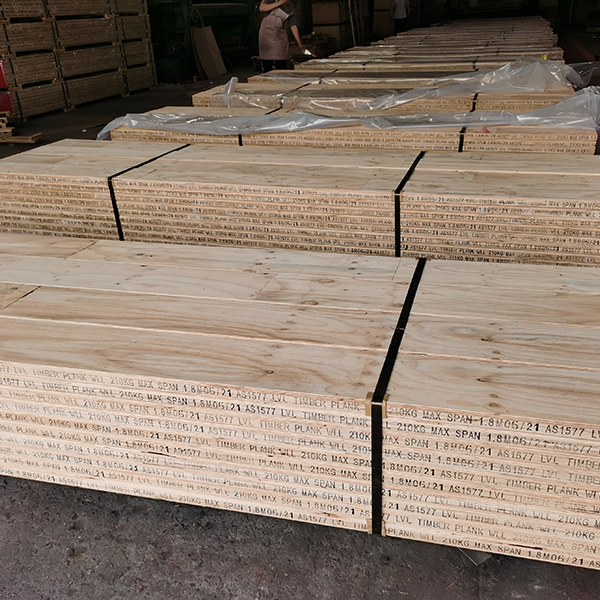

LVL Scaffold Plank

LVL Scaffold Plank are made by longitudinal laminated construction, using high standard glues (e.g. WBP Phenolic or Melamine) to press multiple layers of poplar or pine veneers. Compared with solid wood panels, it has high strength, dimensional stability and excellent safety performance, and is widely used in construction scaffolding and temporary platforms.

NOTE: All products can be custom made in size and finish for your specific application.

Which Standards Does This Plywood Comply With:

Tech Specs.

Size 38×225 mm, 42x235mm; standard lengths1.8m, 2.4m, 3.66m, 3.9m, 3.98m, 4m, 6m (custom lengths available)
Thickness Approx. 38mm (1⅝”), also 42mm; tolerance ±0.5–1 mm
Glue WBP Phenolic / Melamine; ends waxed
Face/Back Lightly sanded for grip; single side
Core Material Pine, Larch or combi core
Certification OSHA, ANSI/SAIA, EN 12811, BS 2482, ISO, FSC etc.
Loading Quantity 40HQ holds ~12–18 pallets (~50 m³)
Density ~500–630 kg/m³
Moisture Content 8–12%
Edge Rounded corners, waxed; reseal after cutting recommended

Product Features

  • High strength and rigidity

    the load bearing capacity is better than solid wood scaffolding board, the specific strength is certified by physical testing.

  • Consistent size and no defects

    no knots, anti-warping, no cracks, improve construction safety.

  • Lightweight and stable

    about 10% lighter than solid wood boards of the same size, easier to handle.

  • Meet safety standards

    Compatible with OSHA, ANSI, EN, BS rules, multiple safety certifications.

  • Waterproof sealing edge

    Wax coated sealing end to prevent moisture and prolong service life.

  • Curved chamfered edges

    rounded edges, reduce planing burrs, safer

Applications

  • Construction site scaffolding boards (horizontally oriented working platforms)

  • Temporary platforms in safe construction environments such as interior decoration, bridges, highways, petrochemicals, and underground works

  • Highly durable scaffolding platforms in high-standard industrial fields such as petrochemical and shipyard construction
