Melamine Board

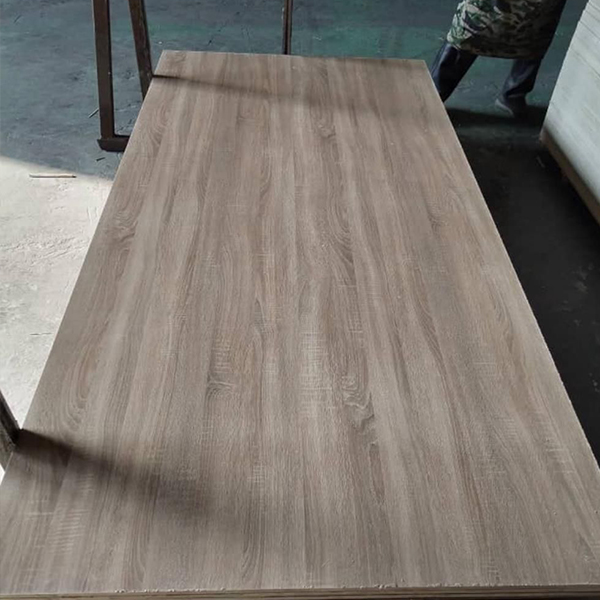

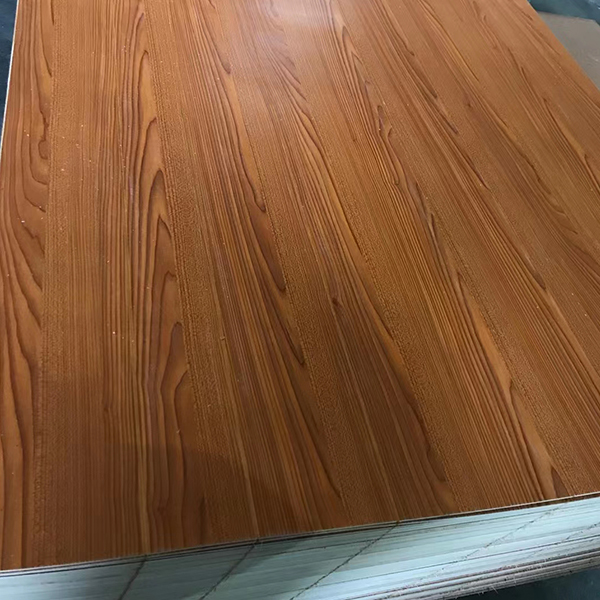

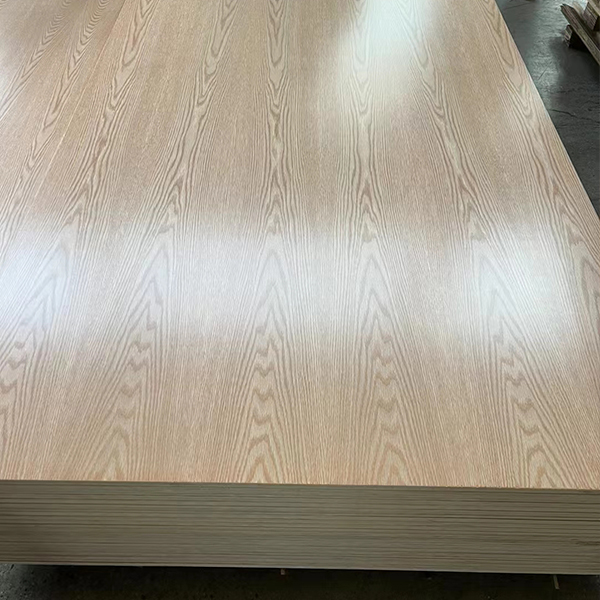

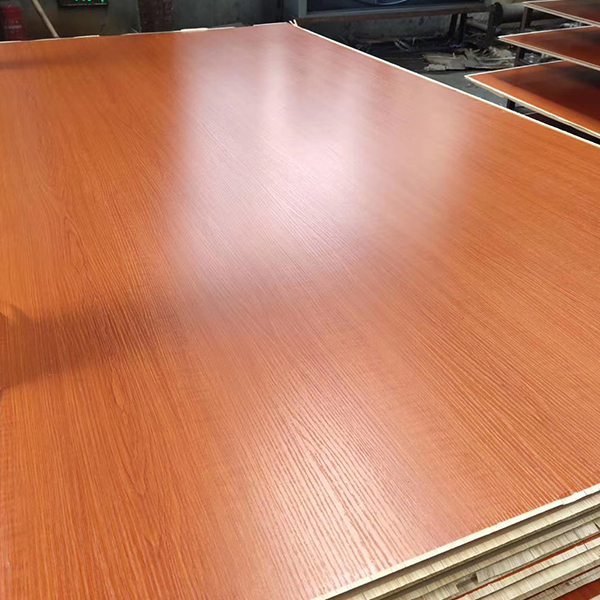

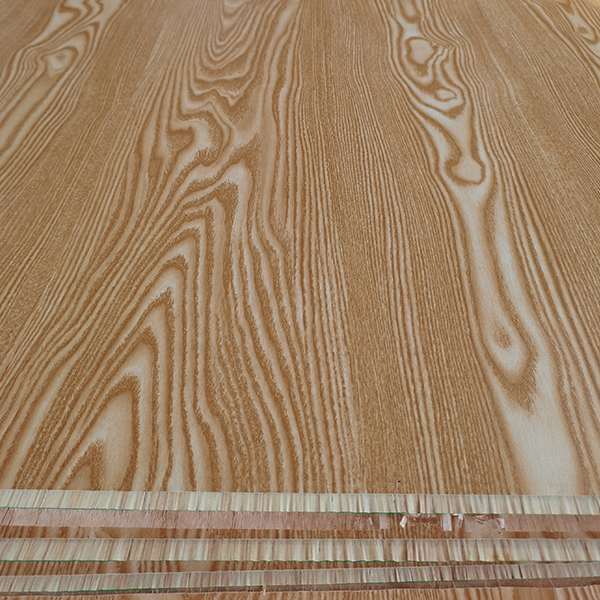

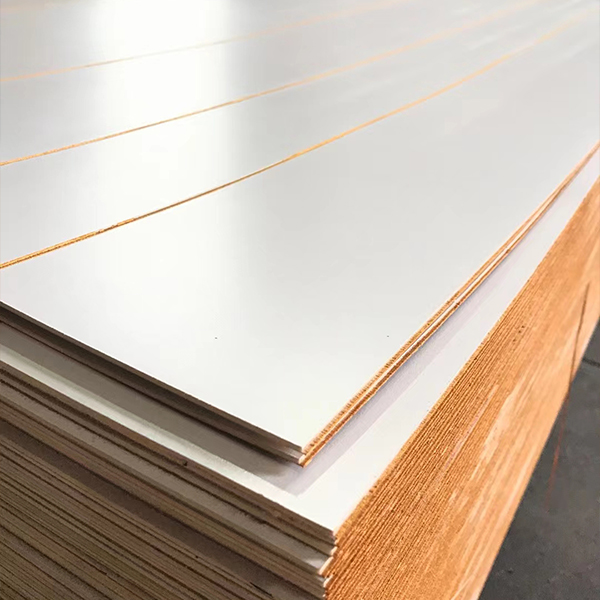

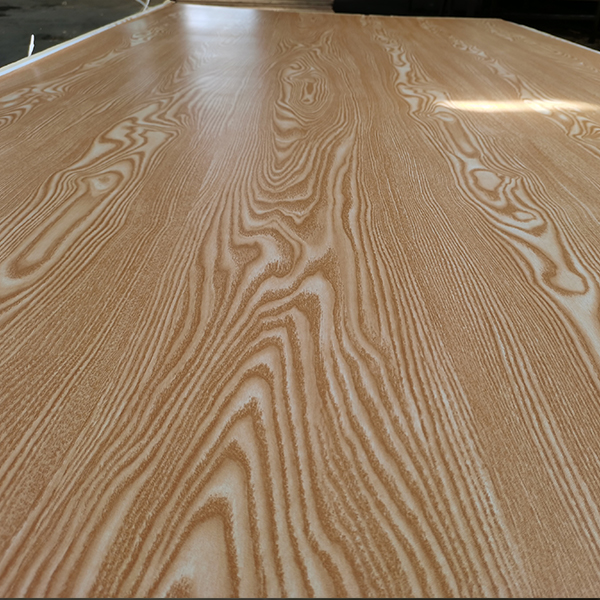

Melamine Board is an engineered board made from chipboard or medium density fiberboard (MDF) with a melamine impregnated resin decorative paper. The core process is the fusion of melamine resin and decorative paper at high temperatures and pressures, resulting in a wear-resistant, moisture-resistant finish while retaining the structural strength of the substrate. The sheet is both functional and aesthetically pleasing, making it the preferred material for furniture and upholstery12.

NOTE: All products can be custom made in size and finish for your specific application.

Which Standards Does This Plywood Comply With:

Tech Specs.

Size 1220×2440 mm / 1250×2500 mm / Custom
Thickness 3–30 mm (customizable)
Glue E0 / E1 / E2 / MR / Melamine / WBP
Face/Back Melamine paper 180–220 g/m² (single or double-sided)
Core Material Plywood, blockboard, MDF, particleboard
Certification CE, FSC, EUTR, CARB, EPA, JAS, ISO
Loading Quantity 20′GP: 8 pallets (~22 m³); 40′HQ: 18 pallets (~50 m³)
Density 520–700 kg/m³ (core-dependent)
Moisture Content 6–10% typically
Edge Factory-coated waterproof edges; resealing recommended after cutting

Core process characteristics

  • Substrate

    pressed from recycled wood (wood chips, paper, etc.), 100% recyclable and in line with environmental trends

  • Finishes

    melamine resin impregnated paper, available in imitation wood grain, monochrome or personalized patterns (e.g. printed patterns designed by Trendcor Laboratories)

  • Texturing

    three-dimensional textures can be added to match the decorative design (e.g. E.I.R. technology) to enhance tactile and visual effects

Product Features

  • Environmentally friendly

    Our plywood is 100% recyclable, made from recycled wood, and certified with low formaldehyde to meet environmental standards.

  • Durability

    Our panels feature high abrasion resistance (3H hardness), superior anti-scratch performance compared to natural wood, moisture and corrosion resistance with a melamine finish, and UL94 V-0 flame retardancy.

  • Design and Functionality

    We offer a variety of finishes, including matte, glossy, stone-like, metallic, and customizable Pantone colors, with an easy-to-clean, non-porous surface.

  • Safety Controversy and Response

    Our products use eco-friendly resins, passing the 72-hour boiling water test (EN314-2) for safety, and we advise wearing masks during processing to avoid dust inhalation.

Applications

  • Furniture manufacturing

    -Cabinet panels, drawer bottoms (thickness 8-18mm) -Customized Office Furniture (laser engraving of logo available)

  • Interior Decoration

    -Wall sheathing, partitions (matte surface anti-glare) -Commercial space display racks (imitation wood grain reduced cost)

  • Special scenes

    -Ship interiors: waterproof type panels (double-sided finish) -Electronic workshop: anti-static version (surface resistance 10⁶-10⁹Ω)
